Leviathan Airboat

April 19th, 2014 Leave a comment Go to comments

My first airboat. Features a double rudder and a rotating camera stand.

Datasheet:

Completion date: 19/04/2014
Power: electric (RC unit)
Dimensions: length 74 studs / width 42 studs / height 44 studs (including propeller)
Weight: 1.69 kg
Suspension: none
Propulsion: 2 x RC motor
Motors: 2 x RC motor, 1 x PF Medium motor

With a couple of attempts at building a fast LEGO boat behind me, I decided to turn to a more unusual design: an airboat. Airboats are typically small, flat-bottomed vessels that have no submerged parts other than hulls. They are propelled by aircraft propellers and engines, and a sort of a double rudder is used for steering, acting like vector flaps and directing propeller’s thrust. They have become popular thanks to their simplicity and a number of other advantages, including the fact that with very few submerged elements, they have much lower drag than conventional boats. That last property made me think of an airboat as a possible high-speed LEGO vessel.

I have adopted a “maximum power” approach, selecting largest LEGO hull and propeller available. The propeller was quite massive and tall, so I have added two side hulls for sideways stability – they have proved very effective. The propulsion was 2 RC motors powered from the RC unit. To allow testing various gear ratios, the propeller was mounted on a simple mast that could be connected to either RC motors’ output, and inverted as well, thus creating 4 possible combinations. In my test, the most effective combination was: faster motors’ output slightly geared down (1.66:1).

Steering was intended to be as realistic as possible, which is why I installed double rudder behind the propeller, connected to the RC unit’s steering output. Just like in the real airboats, it effectively provided vector control, directing the thrust. The final feature was rotating mount for the GoPro camera, controlled by a PF Medium motor connected to the RC unit’s auxiliary output.

The finished boat, which I called Leviathan for its size, could be dismantled/folded for easy transportation. Despite its relatively large weight, it had a shallow draft thanks to the very high displacement of the central hull, while the side hulls added very little drag and improved the stability greatly.

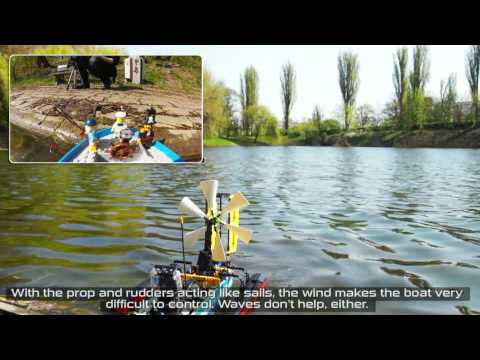

The outdoor tests became complicated because of a strong wind. It because obvious that a boat with a tall structure on it, and no submerged parts other than the hulls is very sensitive to wind. I had plenty of difficulties controlling the boat – it would not turn in certain directions at all, and sometimes it needed full speed just to counter the wind. At one point I was pretty sure I have lost the boat because wind pushed it out onto the lake. Because of this, the tests were kept short and I had no opportunity to measure top speed (which would be biased by wind, anyway) or even to use the rotating camera mount.

This boat was a valuable experience. I’m sure that an airboat with less surfaces above water – that is, smaller thin-bladed propellers and no rudders – would prove much more wind-resistant. It remains to be seen how much of improvement can there be.

Photos:

1.jpg dsc08779.jpg dsc08780.jpg dsc08785.jpg dsc08786.jpg dsc08793.jpg dsc08796.jpg dsc08800.jpg

Video:

YouTube Preview Image
