Le Tourneau L-2350

August 30th, 2009 Leave a comment Go to comments

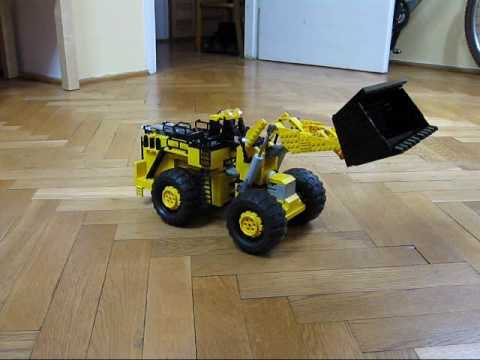

Model of the world’s largest wheeled front loader. Features 4×4 drive, realistic suspension, lights and arm & bucket controlled remotely with linear actuators.


Completion date: 30/08/2009
Power: electric (Power Functions)
Dimensions:  length 58 studs / width 22 studs / height 23 studs
Weight: 1.57 kg
Suspension:  front – none / rear – pendular stabilized with shock absorbers
Motors: 1x 71427, 2x PF Medium, 1x PF XL

Articulated 4×4 vehicles seem to be my soft spot. So far I’ve built three front loaders and an articulated bulldozer, only to find out that I still have a reason to build another front loader – that is, I’ve never used linear actuators with a front loader until now.

The machine I’ve picked this time is the world’s largest wheeled front loader. Le Tourneau L-2350 (sounds French, but it’s actually USA-produced) was designed to co-operate with the largest mining dump trucks (such as e.g. Liebherr T282B whose model I’ve built some time earlier), and at a gross weight over 250 tonnes it is able to move 75 tonnes of load at a time. I was initially attracted by its immense size, hoping that it would allow me to build a large model with plenty of room for internal mechanics. It did not.

As usual, the model’s size was limited by the wheels. The original L-2350 is a huge machine, but unfortunately its wheels are huge too. With Lego 94mm wheels being the largest wheels available for this model I was forced to build it just 22 studs wide. 22 studs may seem like a lot, but only until you look closely at how a regular front loader is usually built: the bucket is 22 studs wide, while the vehicle with wheels is 20 studs wide. The hull without wheels is only 14 studs wide. It still sounds like a lot of place, but almost half of it is made with various small side bulges. The central part of the hull is merely 8 studs wide, and this is where the entire mechanics has to be placed.

The model is really compact – to the point where it would be impossible to build it without the 8878 battery – the standard PF battery box is way too large. It’s driven by a PF XL motor housed in the lower rear part of the hull. The rear axle consists of my usual 3-studs wide differential bracing, which serves as a pendular suspension stabilized by 4 shock absorbers (2 at each side). At the same time it transfers the drive further, through an universal joint, to the front axle which consists of the same, but fixed, bracing. The drive motor is also connected to a large fan that can be seen through a grill plate at the back of the vehicle. Front loaders usually have large radiators in the back, and I liked the idea of placing there a big fan that rotates as the vehicle drives.

The steering mechanism in such a model is always tricky because of the size limitations and a substantial gear reduction necessary. It’s impossible to use turntables in a model that small, and I found even the liftarms to be too large for the central joint structure. The structure was compacted as much as possible and is held together almost exclusively by a single vertical axle. The steering is achieved by a horizontal 40-teeth gear placed on this axle, which is driven by a PF Medium motor through a worm gear. The central joint is traversed by two universal joints – one driving the front axle, the other driving the arm elevation mechanism – and three wires, two of which power the front lights while the third one powers a 71427 motor located above the front axle.

Since it was literally impossible to house all the four motors inside the rear half of the vehicle (I was barely able to fit two IR receivers in there), I was forced to place one motor inside its front half. The motor had to be as short as possible, so the 71427 motor was an obvious choice – it’s two studs shorter that a PF Medium motor while providing similar speed (and much lower torque, but it was not needed for its function). Thus, the bucket is tilted by the 71427 motor via a safety clutch, and the arm is raised by a PF Medium motor housed in the rear part of the model.

The use of linear actuators was the very reason this model was built for, and it proved a significant advantage. Not only the linear actuators are far more accurate and stronger than pneumatic cylinders, but they also make the central joint free of any troublesome pneumatic hoses. There are three actuators used, only one operating the bucket – the real machine uses two hydraulic cylinders for that purpose, but the available space was simply too narrow for two actuators.

As for the look of the model, it suffers from a number of compromises for the sake of functionality – the most apparent of which is the battery box protruding upwards from the rear part of the hull. On the other hand I find the wheels quite neat. I couldn’t find any Lego wheels that would look like the real ones, so with a bit of inspiration from a fellow LUGPol builder M_longer, I’ve used black 94mm wheels with black tires and yellow sprocket wheels placed inside.

I consider it to be an average model. I must admit it performed somewhat better that I expected, but I still had the feeling that it could be much better if only I could make it a little bigger. It was also my first model with a high quality video – I made an effort of filming and rendering it in a quality that would comply with the YouTube HQ standard just to see what it would look like. I was pleased with the effect and decided to make all my future videos in that standard.


1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg dsc01572.jpg dsc01573.jpg dsc01574.jpg dsc01575.jpg dsc01589.jpg dsc01600.jpg dsc01618.jpg dsc01619.jpg dsc01624.jpg dsc01635.jpg dsc01638.jpg dsc01652.jpg dsc01659.jpg dsc01660.jpg dsc01661.png
