Caterpillar 385C Front Shovel Excavator

Caterpillar 385C Front Shovel Excavator

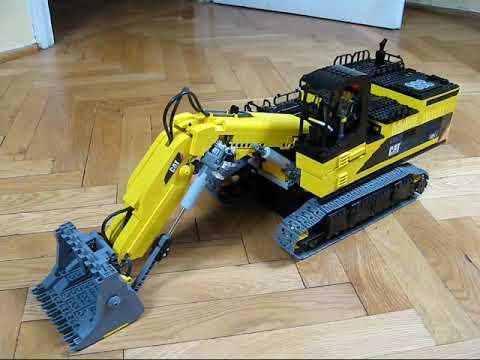

Large model of a Caterpillar front shovel excavator designed for a public display. Features a drivetrain with a subtractor, superstructure rotation mechanism, V12 piston engine, arm with 3 joints controlled remotely by motorized linear actuators, pneumatically opened bucket, remotely elevated operator’s cabin, lights and custom stickers.

Datasheet:

Completion date: 11/06/2010
Power: electric (Power Functions) / pneumatic (fed from internal compressor)
Dimensions (with the arm in ‘resting’ position): length 80 studs / width 28 studs / height 35 studs
Weight: 3.5 kg
Suspension: pendular bogies
Propulsion: PF XL motor geared down 9:1, through a subtractor
Motors: 2 x PF XL, 6 x PF Medium, 1 x 71427

I wanted to build a front shovel excavator controlled by linear actuators for some time already. It took me a while to find a machine with a distinctive silhouette (as many large front shovel excavators are shaped similarly) and my choice was the Caterpillar 90-tonne machine with an unusual cabin elevation system.

The model would be built at much later time if it wasn’t for the people from the Focus popular science magazine, who invited me over to a Picnic of Science held in Warsaw (the largest popular science event in whole Europe). It was a kind invitation, but it also meant a fixed term to build something spectacular and, so to say, public-proof. I had to hurry to make it on time, I even used my absence of leave to finish the model, but I felt it was still not tested sufficiently.

The look of the model is accurate to some degree. The size and all the dimensions are kept faithful, and the colour theme is an exact rendition of one of the two Caterpillar liveries I’ve seen this machine with. The details on the top of the model, however, were intended to look diverse rather than accurate, the V12 piston engine model is completely unrealistic (but it turned out to be a great crowd pleaser, as anticipated), and the arm lacks a single actuator. Additionally, the way the bucket opens up has been changed slightly to make the bucket look better and be more structurally sound.

Caterpillar 385C Front Shovel Excavator

As for the functional side, it was largely affected by the unexpectedly huge weight of the model. While the chassis was providently built around a really massive studless frame, the drivetrain had to be additionally geared down to handle it. Even with the 9:1 gear reduction, some gears in the subtractor are still being grinded to dust. Not a single gear in the drivetrain was broken, but there was a plastic dust coming out whenever I opened up the subtractor. But in fact, the painfully low speed of the model is accurate as the real machine moves at 4.4 kmph.

There is a studless Technic turntable between the chassis and the superstructure. The stability is provided by four double rollers, consisting of two wedge belt wheels with rubber tires each, and integrated into the superstructure’s bearing frame (located, as usual, in its ‘floor’). The rollers are supported by large tiles on the top of the chassis. I have assumed that use of large rollers will be a convenient way of filling the gap between the superstructure and the chassis, and that the rubber tires will provide a degree of elasticity should the superstructure tilt while operating. Whether these assumptions were accurate or not is difficult to prove eventually. But I was right to only use four sets of rollers (front/rear/left/right one) as they provided sufficient stability for as long as they were part of a sound, rigid structure.

The major drawback of this model is the use of an 8-teeth gear wheel as the final part of the superstructure rotation mechanism. The weight of the superstructure coupled with the friction generated by the rollers’ rubber tires caused this gear to be severely damaged during final tests. Since it was very difficult to replace (read: it required to take half of the model apart) and there was no guarantee that the new gear wheel wouldn’t share its fate, I left if the way it was. Which means that the superstructure rotation works only when aided by hand. The video clearly shows that superstructure rotates as long as the rear part of the hull is being gently pushed (at some point I even use a single finger for that to demonstrate that there is indeed a mechanism working there and that I’m not simply rotating the superstructure by a hand). The use of the 8-teeth gear wheel, which worked fine in lighter models, was a mistake here to begin with. I should have used a worm gear instead, preferably one that would be mounted to the chassis and driven from the chassis.

The rear part of the hull houses the 8878 rechargeable battery which powers the whole model and which can be accessed by a small sliding lid. On its left, there is a big V12 piston engine driven by a separate PF Medium motor coupled with the drive motor (which means that there is no mechanical connection between this engine and the drivetrain whatsoever). The whole V12 is fully enclosed inside the hull, and can be displayed by opening up a two-piece lid. I always wanted to include a piston engine into an excavator model, and with a model that large I finally did. On the right side of the battery, there are four IR receivers and beneath them, there is a pneumatic autovalve which controls the opening/closing of the bucket.

The front part of the hull houses a massive frame around the arm’s main joint. The arm is 6 studs wide at this point, and there is a driveshaft, two pneumatic hoses and three electric wires going through the joint. On the right side of the arm there is a PF XL motor which drives two linear actuators that lift arm’s first section. There is also a PF switch which controls the lights on the arm, and which can be accessed by the means of a small door in the right side of the hull. On the left side, there is a cabin sitting on a scissor lift mechanism, which is moved by a single linear actuator driven by a 71427 motor located under the piston engine. The elevation range of the cabin is impressive, especially when you realize that the whole scissor lift mechanism is just 3 studs tall. The mechanism has its drawback too – it puts a very high load on the motor, so it has to be additionally geared down (hence the low speed of cabin elevating) and the weight of the cabin has to be kept low (hence the number of details is lower than intended).

The arm consists of two sections. The first one is controlled by the aforementioned PF XL motor which drives two linear actuators integrated into the front part of the superstructure’s frame. The second section is controlled by a PF Medium motor located in the hull, between the arm and the 8878 battery, which drives a single linear actuator integrated directly into the arm’s first section. There is another PF Medium motor inside the first section, which drives another two linear actuators that tilt the bucket. The second section of the arm is pretty much empty. The arm was built in the same way as it was with my previous excavator: it consists of a studless frame with directly attached actuators, and a studfull outer skin which provides extra stiffness but is not necessary for the arm to work. I am not quite pleased with the somewhat weird look of the pneumatic hoses on the arm – I could have enclosed these inside the arm, but I felt that an excavator’s arm ought to have some hoses on it. But due to the complex construction of the arm’s first section, there was no way to arrange the hoses in a more realistic manner.

The arm has some excellent movement range. In fact, it is somewhat better than that of the original machine – to the point at which it is not necessary to open the bucket to unload it, as it can be simply tilted.

Caterpillar 385C Front Shovel Excavator

As for the bucket opening mechanism, it is very simple and consists of just two small pneumatic cylinders. Some minor part of the load is usually left inside the bucket when it opens, but this is caused by the bucket’s inner shape which results from its internal studless frame rather than by the mechanism itself.

This has doubtlessly seen more practical use than any of my other excavators, as it was operated for a couple of hours straight during a public event. It has also successfully faced the devastating curiosity of little children present at the event, but I won’t describe the details lest I sound like a contraception promoter 😉 In fact, the failing superstructure rotation mechanism is the only thing that prevents me from calling it my best working excavator model ever. The model has been also highly acclaimed by LUGPol members – so highly, in fact, that I was genuinely surprised.
