Forklift PF

January 23rd, 2009 Leave a comment Go to comments

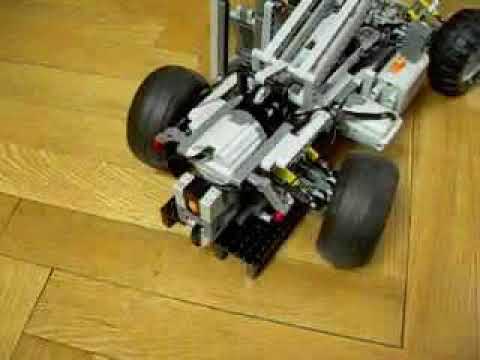

A mastless forklift. Features full independent suspension with normal & crab steering mode, remotely elevated boom, remotely tilted fork, remotely switched steering mode and lights.


Completion date: 16/11/2008
Power: electric (Power Functions)
Dimensions:  length 62 studs / width 28 studs / height 18 studs
Weight:  1.48 kg
Suspension:  full independent with shock absorbers
Motors: 4 x PF Medium, 2 x PF XL

Upon acquiring the 8297 set, I felt compelled to utilize its suspension components along with the linear actuators, to refresh my earlier telehandler designs, and see what potential can they gain with the new parts. This resulted in a vehicle that is a mastless type of forklift, though it greatly resembles a telehandler. Well, that’s just the charm of the formal classification.

The basic feature of the model was the steering on both axles, which was possible in two modes: standard one and a crab steering. This time modes were switched by purely electric means: two separate motor controlled steering of front & rear axle, and the rear one was powered through a PF switch. The switch’s position could be changed remotely by another motor, and in result the rear axle would behave differently in the normal and in the crab steering mode. The system worked very well, mainly thanks to the use of clutches in both front & rear steering system. Thus, it was possible to switch modes at any moment, and adjust wheels’ position by simply turning them to the maximum. The amount of space needed, however, made me give up the idea of a 4 wheel drive, and eventually only the rear axle was driven. Additionally, it was the first use of the new, 3-studs wide differential in a suspension module that had both drive & steering. It worked, but performed below my expectations, and I have taken a completely different approach in my later use of this differential.

The second important feature was the construction of the boom. It consisted of two parallel levers – a system that normally offers the possibility of self-leveling one end accordingly to the other. Thus, the model’s fork maintains its tilt when the boom is raised and lowered. An uncommon solution was the use of another motor to change the position of one lever relatively to the other, which resulted in a simple and effective fork-tilting mechanism.

The model was given a raw, typically ‘Technic’ aesthetics, which met with a better response that I expected. Additionally, the fact that I restrained from using black colour this time, was much appreciated. This was also my first model whose photos’ colors were fixed by me the way the professional photos are fixed, and I was so pleased with the effect that it has become a standard for my later constructions.


1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg dscn9801.jpg dscn9806.jpg dscn9810.jpg dscn9817.jpg dscn9818.jpg dscn9820.jpg dscn9822.jpg dscn9824.jpg dscn9832.jpg dscn9833.jpg dscn9834.jpg dscn9836.jpg dscn9841.jpg dscn9844.jpg dscn9848.jpg dscn9849.jpg dscn9858.jpg dscn9861.jpg dscn9862.jpg dscn9868.jpg dscn9878.jpg dscn9879.jpg dscn9884.jpg dscn9885.jpg dscn9894.jpg dscn9899.jpg dscn9904.jpg dscn9907.jpg dscn9909.jpg
