Direction Sensitive Gearbox

January 5th, 2009 Leave a comment Go to comments

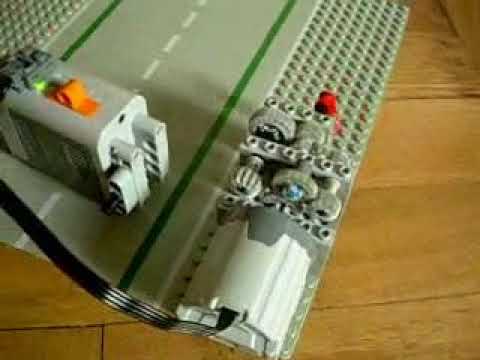

Compact 2-speed gearbox, where gears are changed when the direction of motor’s rotation changes.

This gearbox utilizes a working principle of a ratchet with gears. Only one end of the ratchet is attached, the other one is loose. There are gears on both ends of the ratchet, and it causes it to tilt accordingly to the direction of rotation of the axle it is attached to. To create a pressing force, that helps the ‘loose’ ratchet gear to engage receiver gears, an axle pin with friction is used. That friction consumes some of the motor’s torque, but creates an effect of the ratchet being strongly pressed to whatever obstacle it comes in contact with – in this case, the receiver gears.

The design has mupliple advantages: is extremely compact, pretty robust and needs no external gear changing mechanism. There is one, quite crucial disadvantage: with default gears setup, it can only drive iutput in one direction. So, it is possible to have e.g. vehicle that runs at two different speeds, but only forwards. Obviously, the output can have its direction of rotation changed by a separate mechanism, but that is very troublesome. On the other hand, it is possible to use even numbers of gears for both outputs of the receiver gears, thus obtaining forwards and reverse gear with different gear ratios. Both these options have a limited range of application, however the default setup may be useful for compressors, where the direction of rotation doesn’t matter, but the speed does.

As of the end of 2008, this gearbox design was used in one of my constructions only, in a SandRail, a small buggy able to drive only forwards, where its ability to handle high torque was tested. The performance of the gearbox was satisfactory, and the main conclusion was that it works better when braced in bricks that when braced in liftarms.

An ldr (MLCad format) model of the gearbox is available here.
