Chainsaw

October 12th, 2009 Leave a comment Go to comments

Functional model of a chainsaw. Features on/off trigger and an integrated speed control.

Datasheet:

Completion date: 01/10/2009
Power: electric (Power Functions)
Dimensions:  length 58 studs / width 16 studs / height 21 studs
Weight: 0.615 kg
Motors: 1x PF Medium

A completely spontaneous and unplanned construction. I wanted to make a model of a regular chainsaw for some time, but I didn’t have any idea on how to build the blade until recently. When I got the blade to work, the rest followed in just a couple of days.

The blade is basically a 1 stud thick layer of bricks. On the tip of it, there is a 40t gear with no apparent means of support. Between it and the blade, there are two freely rotating 8t gears that let the 40t gear roll on them. The 40t gear is pushed against the 8t gears by the chain – so basically the whole blade is kept together by the tightness of the chain.

The saw is loosely modeled after some standard Husqvarna machine. I did not calculate its dimensions, it was built just roughly. Inside the saw, there is a single PF Medium motor powered by the Lego battery. The battery can be turned on or off by a trigger inside the saw’s rear handle. The speed control system implemented in the battery is utilized as well – the speed can be controlled by a lower grey gear on the saw’s side (the upper gear is just a mock-up). The saw was extremely fun to build, but doesn’t really cut well. Firstly the plastic chain was simply unfit for cutting, and secondly it tended to come apart when pushed against some hard surface, which resulted in the 40t gear falling off immediately.

Photos:

1.jpg dsc02007.jpg dsc02009.jpg dsc02012.jpg dsc02016.jpg dsc02019.jpg dsc02021.jpg dsc02026.jpg

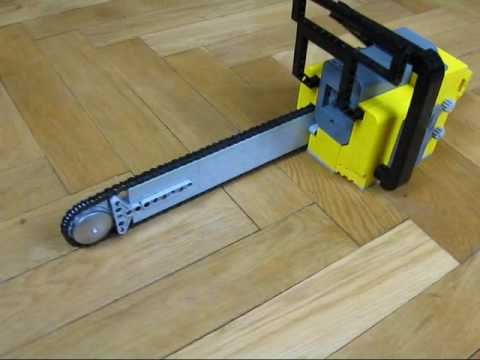

Video:
